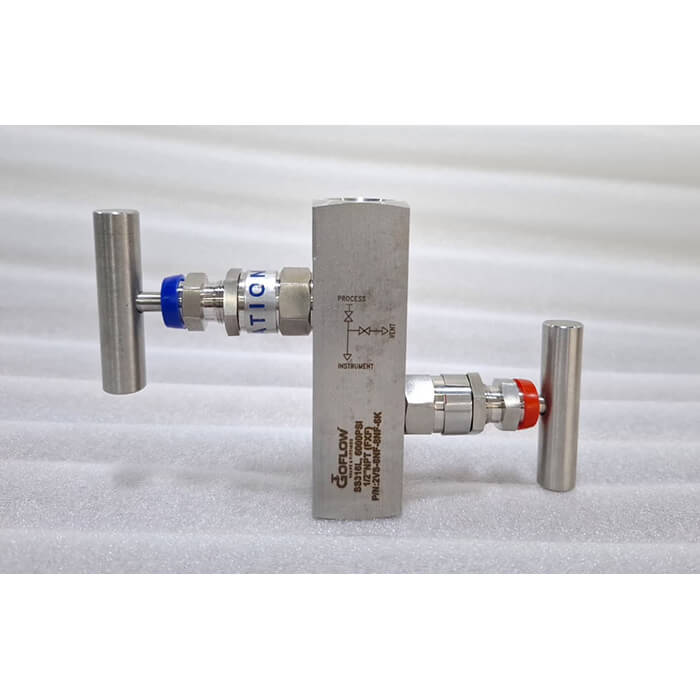

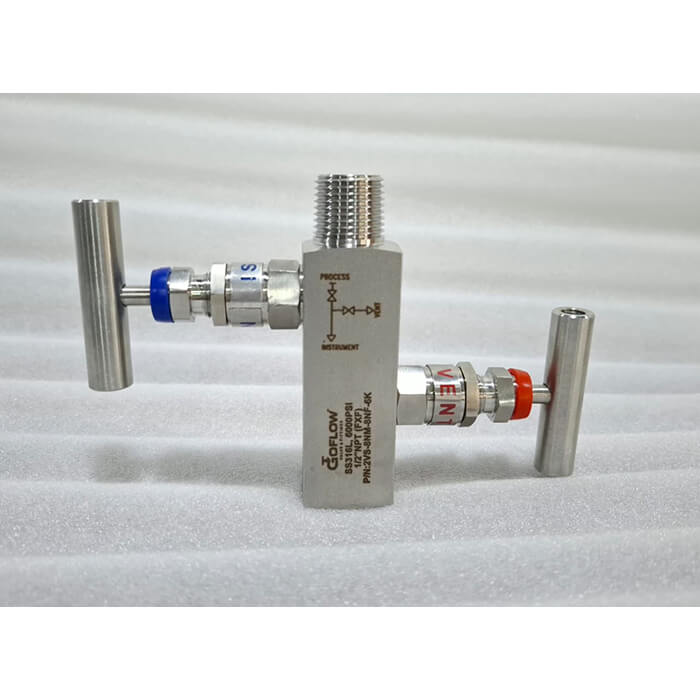

2 Way Manifold
GOFLOW Valve & Fittings offers high-quality 2 Valve Manifolds designed for isolation and venting of pressure instruments in critical applications. These manifolds ensure reliable performance, precise control, and safe operation in high-pressure systems.
Manufactured using premium materials such as SS 316, Duplex, Monel, Inconel, and Hastelloy, they provide excellent strength and corrosion resistance for demanding environments.
They are available with versatile end connection options including Male & Female NPT, BSPP, and BSPT, ensuring easy integration into various systems. Multiple configurations are offered such as pipe to pipe, pipe to flange, and flange to flange, providing flexibility in installation.
- Maximum Working Pressure: Up to 10,000 psig (690 bar)
Features & Options
- Available in PTFE and Graphoil packing materials
- Offered with non-rotating tip (standard) and ball tip (on request)
- Designed for instrument isolation and venting applications
- Mounting brackets and accessories available upon request
Testing & Quality Assurance
- 100% Hydrostatic Shell Test: Conducted at 1.5 times the working/rated pressure
- 100% Hydrostatic Seat Test: Conducted at 1.1 times the working/rated pressure
- 100% Pneumatic Seat Testing performed
- All manifolds are factory tested and certified with a unique serial number
- NACE certification available upon request
Complete heat code traceability ensured
