Panel Mounting Ball Valve
GOFLOW Valve & Fittings offers the PBV Series Panel Mount Ball Valves, specially designed for panel-mounted applications requiring reliable on-off control and compact installation. These valves feature a 3-piece construction with a square body design, ensuring strength, durability, and ease of maintenance.

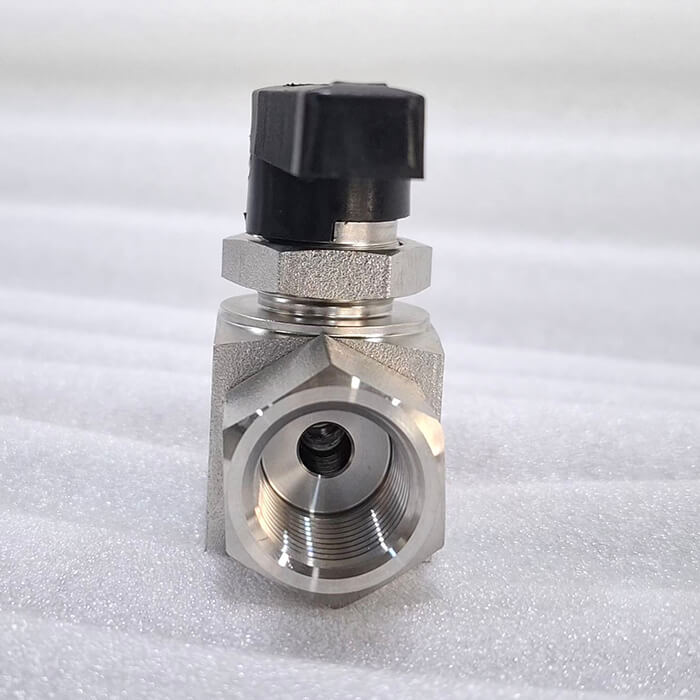

Available in both straight and angle pattern designs, they provide flexibility for various panel and system configurations.
Manufactured using premium materials such as SS 316, Duplex, Monel, Inconel, and Hastelloy, these valves offer excellent corrosion resistance and long service life in demanding environments.

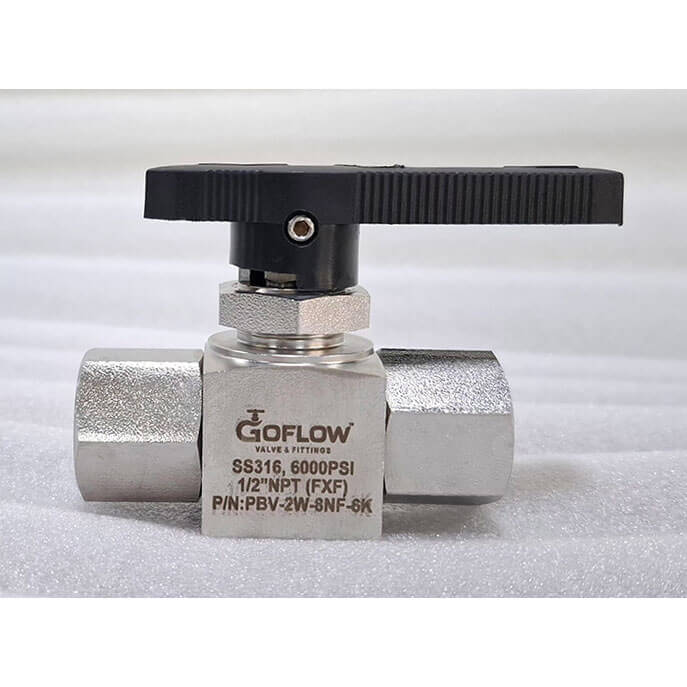

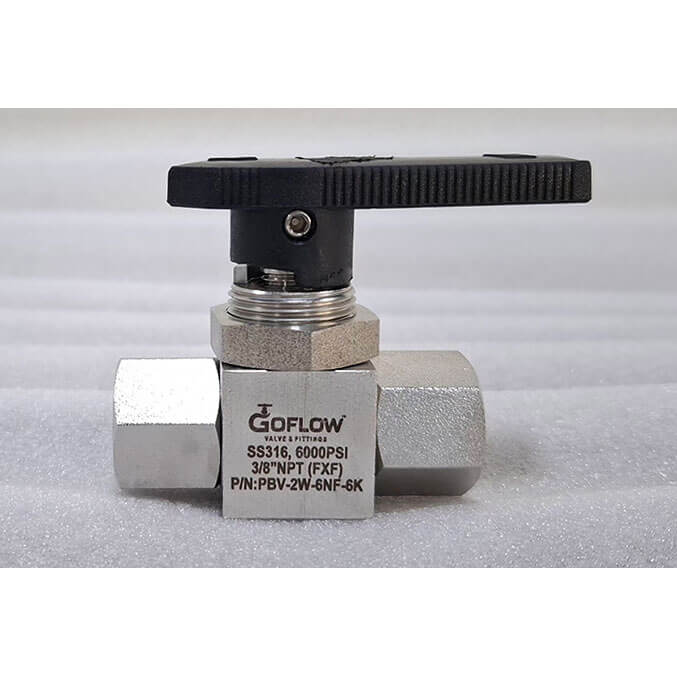

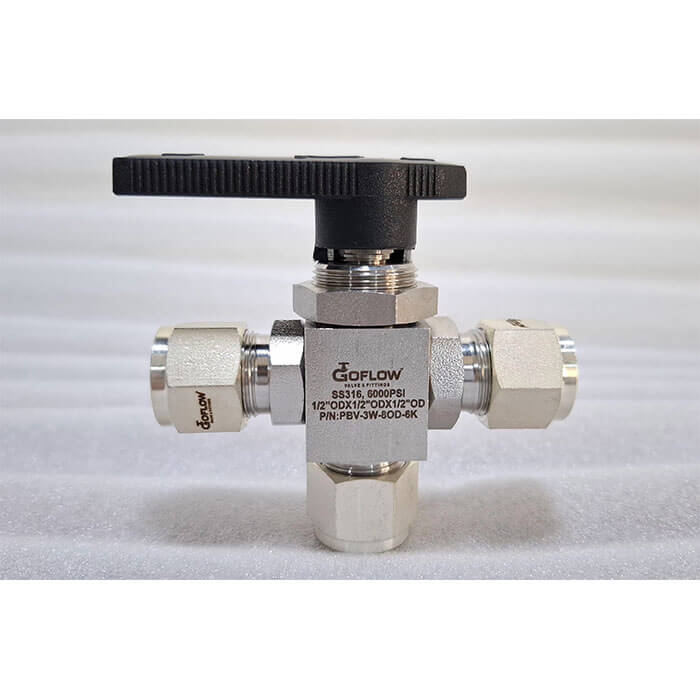

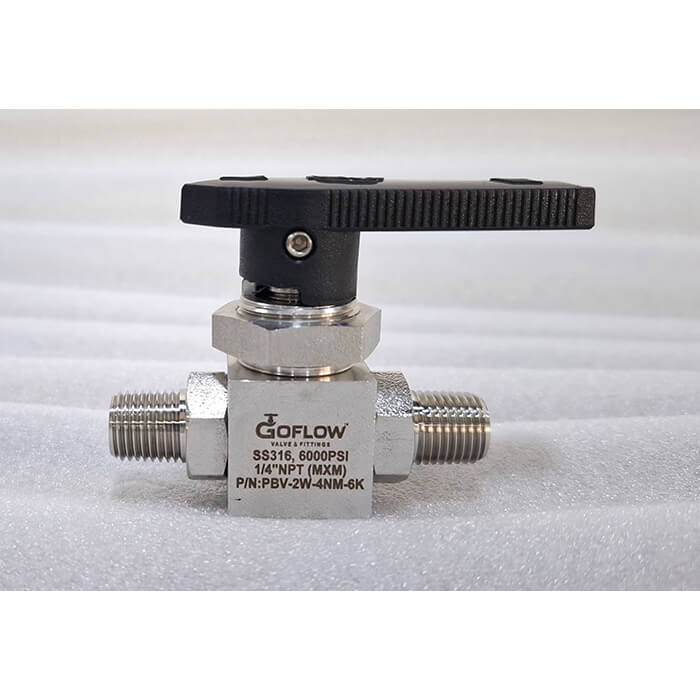

They are available with multiple end connection options including Male & Female NPT, BSPP, BSPT, and Tube End connections, ensuring compatibility with a wide range of systems.
- Size Range: 1/8″ to 1″
- Maximum Working Pressure: Up to 6,000 psig (413 bar)
Features & Options
- Floating ball design ensures leak-proof shut-off under pressure
- Available in PTFE, Delrin, and PEEK packing materials
- Anti blow-out internally loaded stem for enhanced safety
- Multiple handle options available
- Designed for panel mounting and compact installations
Testing & Quality Assurance
- 100% Hydrostatic Shell Test: Conducted at 1.5 times the working pressure
- 100% Hydrostatic Seat Test: Conducted at 1.1 times the working pressure
- 100% Pneumatic Seat Testing performed
- All valves are factory tested and certified with a unique serial number
- NACE certification available upon request
Complete heat code traceability ensured
