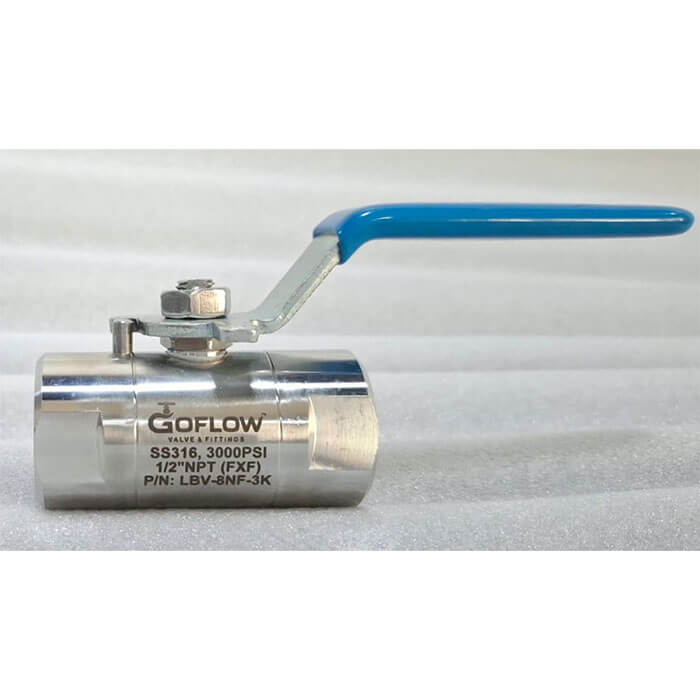

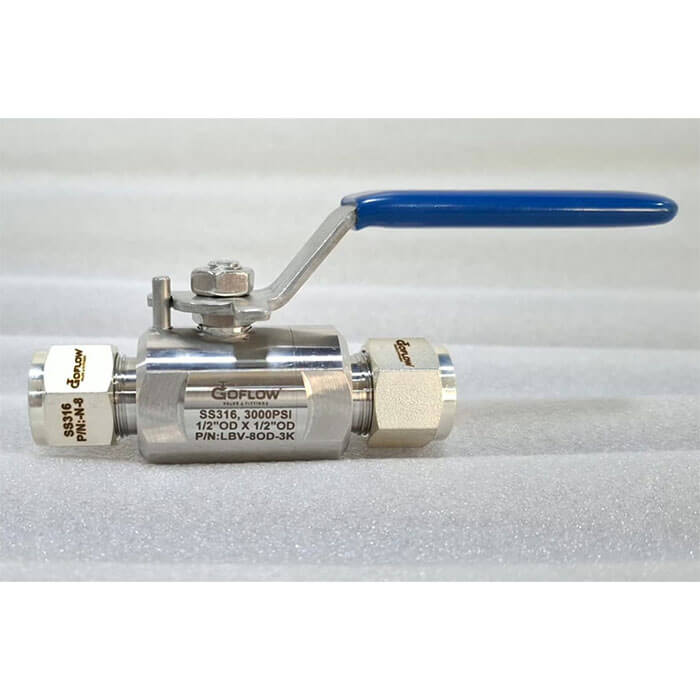

Low Pressure Ball Valves
GOFLOW Valve & Fittings offers the LBV Series Low Pressure Ball Valves, designed for reliable on-off control in general and medium-pressure applications. These valves feature a 2-piece construction with a round body design, ensuring compactness, durability, and ease of maintenance.
Manufactured using high-quality materials such as SS 316, Duplex, Monel, Inconel, and Hastelloy, they provide excellent corrosion resistance and long service life across a wide range of industrial environments.
The valves are available with multiple end connection options including Male & Female NPT, BSPP, BSPT, and Tube End connections, ensuring flexibility in installation.
- Size Range: 1/8″ to 1″
- Maximum Working Pressure: Up to 3,000 psig (206 bar)
Features & Options
- Floating ball design ensures leak-proof shut-off even under pressure
- Available in PTFE, Delrin, and PEEK packing materials
- Anti blow-out internally loaded stem for enhanced safety
- Multiple handle options available
- Compact and robust design for long service life
Testing & Quality Assurance
- 100% Hydrostatic Shell Test: Conducted at 1.5 times the working pressure
- 100% Hydrostatic Seat Test: Conducted at 1.1 times the working pressure
- 100% Pneumatic Seat Testing performed
- All valves are factory tested and certified with a unique serial number
- NACE certification available upon request
Complete heat code traceability ensured
